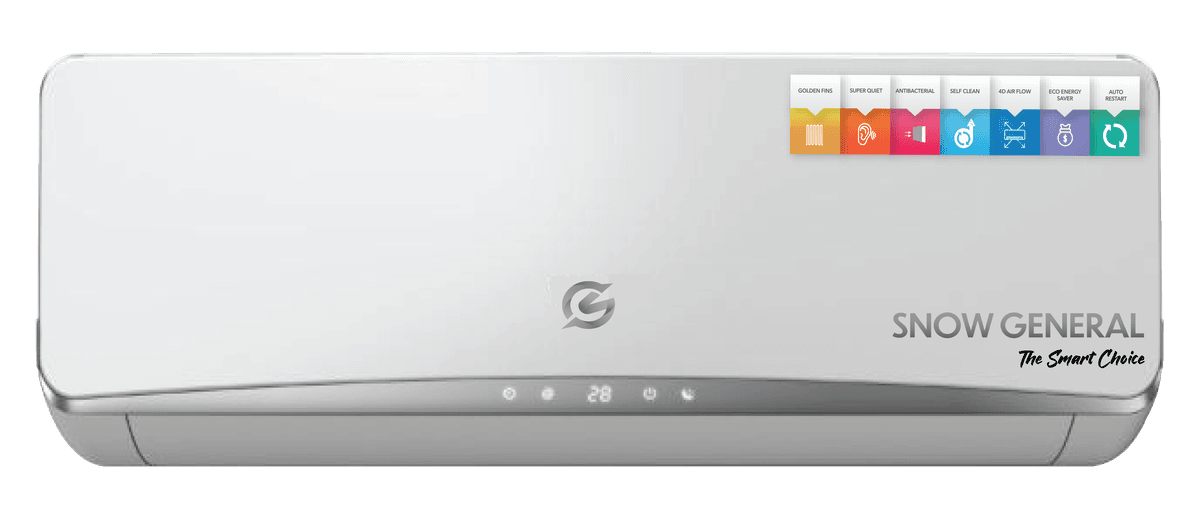

Aviator AC - Cooling & Heating
GS-R12HC
Type
T1 HeatPump
T1 Cooling Capacity (Btu/h)
12000
T1 Cooling Capacity (W)
3517
T1 Input Cooling (W)
1150
T1 EER for Cooling (Btu/W)
10.20
Heating Capacity (Btu/h)
12000
Heating Capacity (W)
3517
Input Heating (W)
1030
COP for Heating (W/W)
3.43
Air Circulation (CMH Max)
660
Refrigerant
R410A
Indoor Noise Level High (dB(A))
38
Indoor Noise Level Low (dB(A))
33
Outdoor Noise Level (dB(A))
52
Power Supply (Voltage/Frequency/Phase)
220-240V/50Hz/1P
Cooling Current Input (A)
5.3
Heating Current Input (A)
4.8
Compressor Type
Rotary
Compressor MFG
GMCC
Compressor Model
KSM133V2VFTL
Expansion Device
Throttle Tube
Evaporator
Copper and Aluminum Fin
Condenser
Copper and Aluminum Fin
Liquid Pipe (inch)
1/4
Gas Pipe (inch)
1/2
Indoor Unit Dimensions (mm)
850 × 212 × 270
Outdoor Unit Dimensions (mm)
715 × 540 × 240
Net Weight Indoor (kg)
8.5
Net Weight Outdoor (kg)
27
Packing Dimensions Indoor (mm)
870 × 335 × 265
Packing Dimensions Outdoor (mm)
845 × 340 × 600
Gross Weight Indoor (kg)
11
Gross Weight Outdoor (kg)
29
Loading Capacity (40' HC)
126 / 260 / 290
