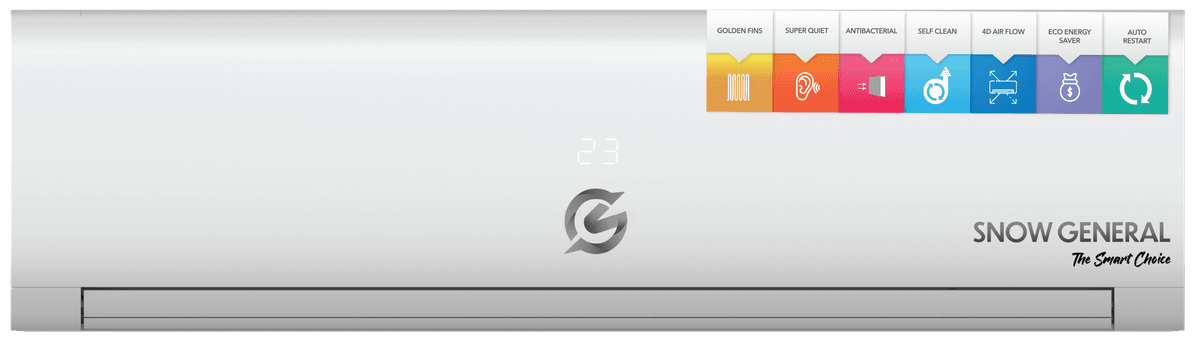

Aviator AC - Cooling & Heating
GS-R30HC
Type
T3 HeatPump
T3 Cooling Capacity (Btu/h)
30000
T3 Cooling Capacity (W)
8792
T3 Input Cooling (W)
2540
T3 EER for Cooling (Btu/W)
11.81
Heating Capacity (Btu/h)
29500
Heating Capacity (W)
8646
Input Heating (W)
2530
COP for Heating (W/W)
3.4
Air Circulation (CMH Max)
1800
Refrigerant
R410A / 2.07 kg
Indoor Noise Level High (dB(A))
48
Indoor Noise Level Low (dB(A))
43
Outdoor Noise Level (dB(A))
60
Power Supply (Voltage/Frequency/Phase)
220-240V/50Hz/1P
Cooling Current (A)
11.5
Heating Current (A)
11.4
Compressor Type
Rotary
Compressor MFG
Highly
Compressor Model
ATH290MV-C8FU
Expansion Device
Capillary
Evaporator
Copper and Aluminum Fin
Condenser
Copper and Aluminum Fin
Liquid Pipe (inch)
3/8
Gas Pipe (inch)
5/8
Indoor Unit Dimensions (mm)
1298 × 345 × 257
Outdoor Unit Dimensions (mm)
885 × 795 × 366
Net Weight Indoor (kg)
19.5
Net Weight Outdoor (kg)
60
Packing Dimensions Indoor (mm)
1425 × 435 × 325
Packing Dimensions Outdoor (mm)
1050 × 890 × 500
Gross Weight Indoor (kg)
22
Gross Weight Outdoor (kg)
66
Loading Capacity (40' HC)
48 / 100 / 114
