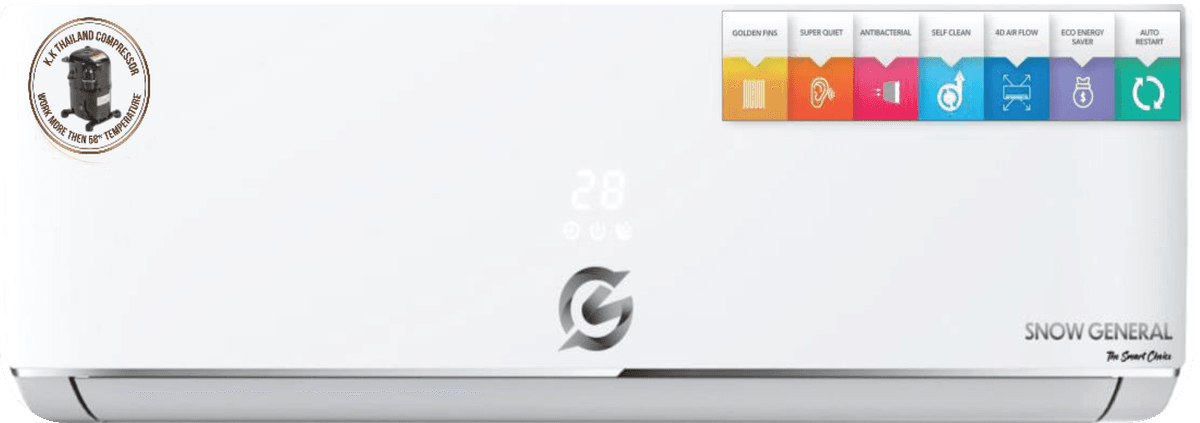

Cooling Piston Compressor
GS–P196C
Type
T3, Cooling only
Rated T1 Cooling Capacity (Btu/h)
19000
ESMA Cooling Capacity (Btu/h)
15700
Rated Input Cooling (W)
2000 / 2310
Moisture Removal (L/h)
1.8
Air Circulation Super (m3/h)
1050
EER For Cooling (W/W)
2.75 / 2.08
Refrigerant (Type/Kg)
R22
I/U Noise Level High (dB(A))
42
O/U Noise Level (dB(A))
56
Power Supply (Voltage/Frequency)
220–240V~, 50Hz
Rated Current Cooling (A)
9.3 / 10.6
LRA (A)
51.3
Compressor Type
Reciprocating
Compressor MFG
KK – Made In Thailand
Compressor Model No
AW5524EK
Capacity (W)
6140
Input (W)
2089
Rated Current (RLA) A
9.64
Indoor Fan Motor Voltage, Frequency (V,Hz)
1, 208–240V~, 50Hz
Model
DG13B2–07
Power Supply (V)
12V DC
Output (W)
4
Expansion Device
Throttling Pipe
Connecting Pipe Liquid Diameter (inch)
1/4
Connecting Pipe Gas Diameter (inch)
1/2
Connecting Pipe Connecting Cable Diamater
3×1.5 mm²
Net Dimensions Indoor (mm)
960×315×235
Net Dimensions Outdoor (mm)
860×650×310
Net Weight Indoor (Kg)
12.5
Net Weight Outdoor (Kg)
51.5
Packing Dimensions Indoor (mm)
1022×380×302
Packing Dimensions Outdoor (mm)
995×420×720
Gross Weight Indoor (Kg)
14.5
Gross Weight Outdoor (Kg)
58.5
Loading Capacity (40' HC)
160
