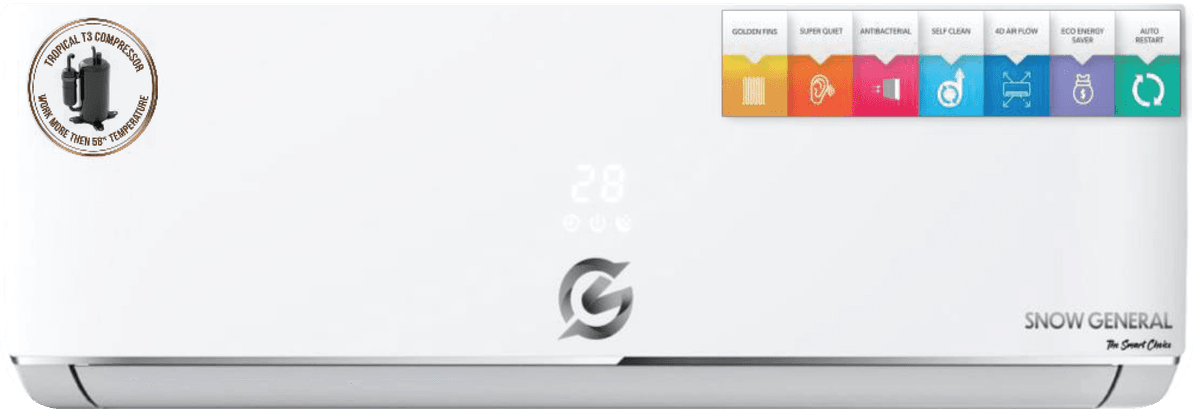

Cooling T3 Rotary Compressor
GS-R134C
Type
T3, Cooling only
Rated T1 Cooling Capacity (Btu/h)
13000
ESMA Cooling Capacity (Btu/h)
10700
T1 Rated Input Cooling (W)
1190
T3 Rated Input Cooling (W)
-
Moisture Removal (L/h)
1.5
Air Circulation (CMH Max)
620
T1 EER For Cooling (Btu/h.W)
-
T3 EER For Cooling (Btu/h.W)
2.96
Refrigerant (Type/Kg)
R410A
I/U Noise Level High (dB(A))
39
I/U Noise Level Low (dB(A))
-
O/U Noise Level (dB(A))
52
Power Supply - Voltage, Frequency (V/Hz)
220 - 240V~, 50Hz
Rated Current | Cooling (A)
5.2
Compressor Type
Rotary
Compressor MFG
Highly
Compressor Model No
ASG140TV - A7AT3
Expansion Device
Throttle Tube
Connecting Pipe Liquid (inch)
1/4
Connecting Pipe Gas (inch)
1/2
Net Dimensions - Indoor Unit (mm)
906×270×210
Net Dimensions - Outdoor Unit (mm)
780×540×260
Net Weight Indoor Unit (Kg)
9
Net Weight Outdoor Unit (Kg)
28.5
Packing Dimensions - Indoor Unit (mm)
1000×335×260
Packing Dimensions - Outdoor Unit (mm)
910×360×600
Gross Weight Indoor Unit (Kg)
11
Gross Weight Outdoor Unit (Kg)
34
Loading Capacity (40' HC)
260
