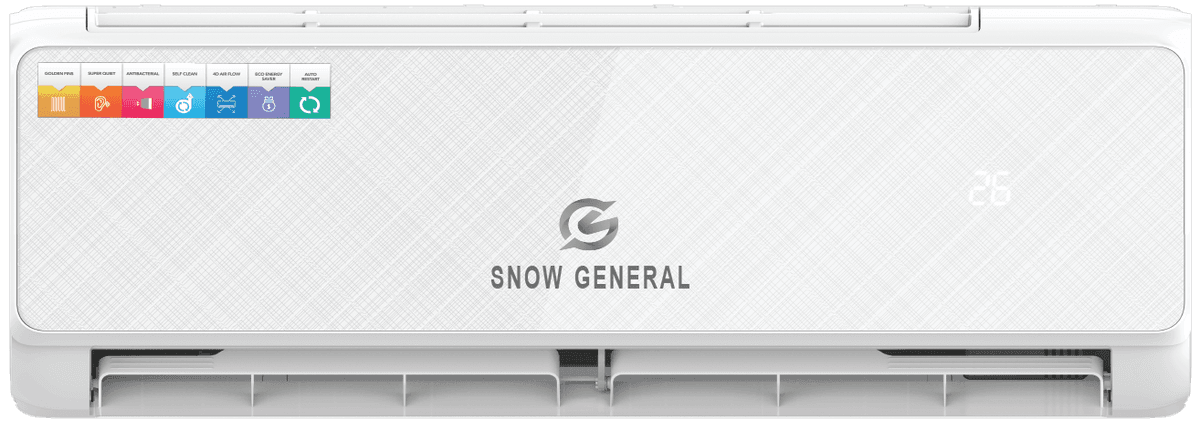

Diamond Series - Inverter
GS-DC128X
Total Cooling Capacity (Btu/h)
12000
Effective Power Input PE (W)
1180
Energy Efficiency Ratio EER (Btu/h)/W
9.07
Measured EER (Btu/h)/W
9.28
Test Voltage (V)
198V and 264V
Test Frequency (Hz)
50Hz
Indoor Test Temp (Dry/Wet °C)
32/23
Outdoor Test Temp (Dry/Wet °C)
52/31
Electric Shock Prevention
Class 1
Climate Type
T3
Power Supply
220–240V~/50Hz
T1 Cooling Capacity
3.51kW / 12000 Btu/h
T3 Cooling Capacity
3.14kW / 10700 Btu/h
Cooling Running Current (T1/T3)
4.50A | 5.20A
Cooling Power Input (T1/T3)
0.96kW | 1.18kW
Power Factor
0.98
ACE
2360 kWh/Yr
EER (T1/T3) (Btu/h)/W
12.50 / 9.07
Max Input Current
8.5A
Max Input Power
2.40kW
Max Discharge Pressure
4.3MPa
Max Suction Pressure
1.15MPa
Refrigerant
R410A
Refrigerant Quality
0.75kg
Waterproof Class
IPX4
Net Weight Indoor Unit (kg)
8.5kg
Net Weight Outdoor Unit (kg)
26kg
Gross Weight Indoor Unit (kg)
11kg
Gross Weight Outdoor Unit (kg)
30kg
Rated Power Input PE (E)
1180W
Cooling Power - Effective Power Input PE (W)
1140.2
Rated Cooling Capacity (Btu/h)
10700
Cooling Capacity (Btu/h)
10585.5
Sensible Cooling Capacity (Btu/h)
102838
Latent Cooling Capacity (Btu/h)
301.7
Loading Capacity (40' HC)
214
Compressor Type
Inverter
Compressor MFG
GMCC
Compressor Model
KSN98D64UFZA3
