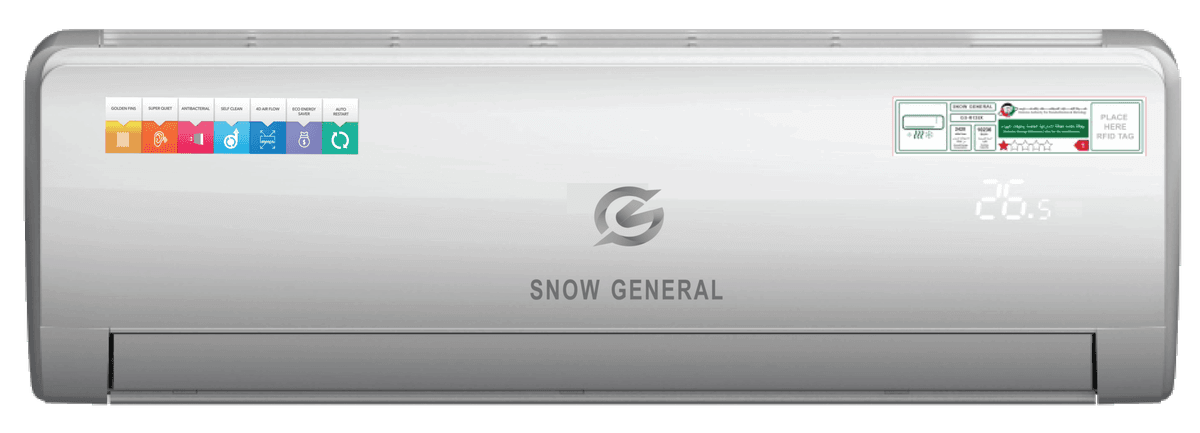

Diamond Series - Piston
GS-P327X
T1 Cooling Capacity (Btu/h)
30000
Climate Type
T3
T3 EER for Cooling (Btu/h)/W
10.34
Cooling Power (kW)
2.90kW
Cooling Current (A)
11A
Max Input Power (kW)
4.30kW
Max Input Current (A)
21.5A
Air Volume (m³/h)
1600m³/h
Power Supply
220–240V~/50Hz
Max High Pressure (MPa)
3.20MPa
Max Suction Pressure (MPa)
0.8MPa
Inside Noise Level (dB(A))
52dB(A)
Outside Noise Level (dB(A))
60dB(A)
Compressor Type
Reciprocating
Compressor MFG
COPELAND
Compressor Model
CR37K6M-PFZ-101MM
Indoor Unit Dimensions (mm)
1250×360×253
Outdoor Unit Dimensions (mm)
970×805×395
Net Weight Indoor Unit (kg)
16kg
Net Weight Outdoor Unit (kg)
69kg
Gross Weight Indoor Unit (kg)
21kg
Gross Weight Outdoor Unit (kg)
75kg
Electric Shock Prevention
Class I
Waterproof Class Indoor
IPX0
Waterproof Class Outdoor
IPX4
Refrigerant
R22
Charge (kg)
2.05kg
Loading Capacity (40’ HC)
98
