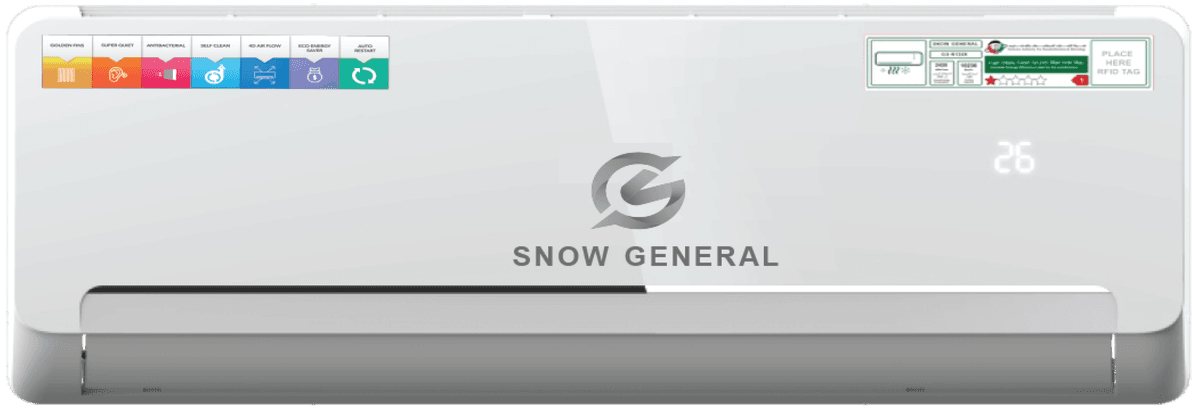

Diamond Series - Rotary
GS-R135X
T1 Cooling Capacity (Btu/h)
12000
T3 Cooling Capacity (W)
3000
T3 EER for Cooling (Btu/h)/W
11.88(Btu/h)W | 8.48(Btu/h)W
Cooling Power (kW)
1.01kw | 1.21kw
Cooling Current (A)
4.5A | 5.3A
Max Power Input (kW)
1.4kW
Max Current (A)
10.0A
Air Volume (m³/h)
600m³/h
Power Supply
220–240V~/50Hz
Max High Pressure (MPa)
4.3MPa
Max Low Pressure (MPa)
1.15MPa
Inside Noise Level (dB(A))
41dB(A)
Outside Noise Level (dB(A))
53dB(A)
Compressor Type
T3 Rotary
Compressor MFG
HIGHLY
Compressor Model
ASG130MV-AT3
Indoor Unit Dimensions (mm)
837×296×205
Outdoor Unit Dimensions (mm)
795×525×290
Net Weight Indoor Unit (kg)
9.5kg
Net Weight Outdoor Unit (kg)
31kg
Gross Weight Indoor Unit (kg)
12kg
Gross Weight Outdoor Unit (kg)
35kg
Electric Shock Prevention
Class I
Waterproof Class Indoor
IPX0
Waterproof Class Outdoor
IPX4
Refrigerant
R410A
Charge (kg)
0.83kg
Loading Capacity (40’ HC)
210
